Plotting

popo.plotting draws network diagrams, line plots and tables in one style, the style used by every figure in this documentation. It needs the plot extra.

Figure style

popo.plotting.style.configure() applies the style to every figure that follows: serif type, thin axes without a grid, and the popo palette. With latex=True, the default, text is typeset by LaTeX, which must be installed; latex=False uses matplotlib’s own text rendering. popo.plotting.line_style calls the same function and adds conventions for line plots.

from popo.plotting import line_style

line_style.configure(latex=False)

Network diagrams

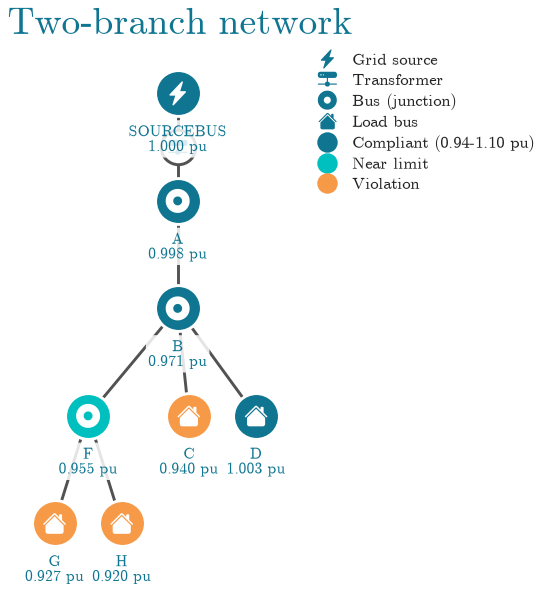

topology_from_dss() reads the topology and bus voltages of a solved circuit, and plot_topology() draws it as a schematic: a lightning bolt for the source, a transformer badge, a house for each customer, and every bus coloured by its voltage status.

from popo.network import Circuit
from popo.plotting.network import plot_topology, topology_from_dss

circuit = Circuit()
for command in [
    "Clear",
    "Set DefaultBaseFrequency=50",
    "New Circuit.Example",
    "Edit Vsource.Source bus1=SourceBus basekv=11 pu=1.0 phases=3",
    "New Transformer.LVTR Buses=[SourceBus, A.1.2.3] Conns=[delta wye] KVs=[11, 0.4] KVAs=[250 250] xhl=2.5",
    "New Linecode.240sq nphases=3 R1=0.127 X1=0.072 units=km",
    "New Linecode.16sq nphases=1 R1=1.15 X1=0.083 units=km",
    "New Line.A_B bus1=A.1.2.3 bus2=B.1.2.3 length=1 units=km linecode=240sq",
    "New Line.B_F bus1=B.1.2.3 bus2=F.1.2.3 length=1 units=km linecode=240sq",
]:
    circuit.command(command)
for i, (feeder, house, kw) in enumerate([("B", "C", 7), ("B", "D", 6), ("F", "G", 7), ("F", "H", 9)], start=1):
    phase = 1 + (i - 1) % 3
    circuit.command(f"New Line.L{i} bus1={feeder}.{phase} bus2={house}.{phase} length=0.01 units=km linecode=16sq")
    circuit.command(f"New Load.{house} bus1={house}.{phase} phases=1 kV=0.23 kW={kw} pf=0.95")
circuit.command("Set VoltageBases=[11 0.4]")
circuit.command("CalcVoltageBases")
circuit.solve()

plot_topology(topology_from_dss(circuit.dss), title="Two-branch network", figsize=(6.0, 4.2));

findfont: Failed to find font weight bold for cmr10, now using 400.

Houses C, G and H fall below 0.94 pu and are drawn in orange. House D, at the same distance as C but alone on phase 2, stays at 1.00 pu: on an unbalanced network the phase a customer is on matters as much as its distance from the transformer. The colour thresholds default to 0.94 and 1.10 pu; pass limits= a VoltageLimits to use a standard’s band instead. orientation="horizontal" lays the tree out from left to right.

Line plots

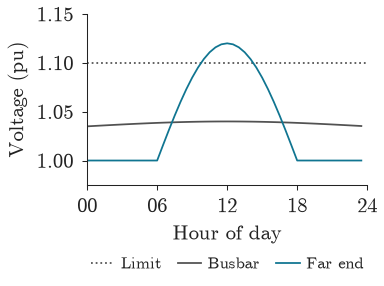

line_style provides the pieces of a line plot: new_panel for a panel at its final size (by default 0.40 of a 6.3 in text width, with an aspect of 0.74), hour_axis for a day from 00 to 24, set_y_axis for padded limits and a few round ticks, reference_line for a dotted level such as a limit, finish for the axes, and legend_below for a legend under the plot. show lays out the figure and places the legend. popo.plotting.tokens names the palette colours by role: PRIMARY for the subject of a figure, DANGER for a failure, TEXT_MUTED for context.

import numpy as np

from popo.plotting import tokens

hours = np.arange(48) / 2
busbar = 1.035 + 0.005 * np.sin(np.pi * hours / 24)
far_end = 1.0 + 0.12 * np.clip(np.sin(np.pi * (hours - 6) / 12), 0, None)

fig, ax = line_style.new_panel()
line_style.reference_line(ax, 1.10, label="Limit")
ax.plot(hours, busbar, color=tokens.TEXT_MUTED, lw=line_style.LINE_WIDTH, label="Busbar")
ax.plot(hours, far_end, color=tokens.PRIMARY, lw=line_style.LINE_WIDTH, label="Far end")
line_style.hour_axis(ax)
line_style.set_y_axis(ax, busbar, far_end, [1.10])
ax.set_ylabel("Voltage (pu)")
line_style.finish(ax)
line_style.legend_below(ax, ncol=3)
line_style.show(fig)

Tables

themed_gt() styles a DataFrame as a Great Tables table in the same palette.

import pandas as pd

from popo.plotting.tables import record_table, themed_gt

voltages = circuit.bus_voltages().query("bus in ['c', 'd', 'g', 'h']")
themed_gt(voltages[["bus", "phase", "vmag_pu"]].reset_index(drop=True), decimals=3)

bus	phase	vmag_pu
c	1	0.940
d	2	1.003
g	3	0.927
h	1	0.920

record_table() shows a one-row summary, such as summary(), as a two-column table.

record_table(circuit.summary(), title="Circuit summary")

Circuit summary
statistic	value
converged	True
n buses	8
n lines	6
n loads	4
n transformers	1
total p loss kw	1.449
total q loss kvar	1.240

Limitations

• plot_topology suits networks of up to a few dozen buses. On a feeder with hundreds of buses the labels overlap; plot the voltages as a line or distribution instead.

• configure changes matplotlib’s global settings for the rest of the session. Call matplotlib.rcdefaults() to undo it.

• Great Tables output is HTML. It renders in notebooks and in this documentation, not in a plain terminal.
